E3CF

L4J H/C

BOEING E-3A (CFM56) Sentry BOEING E-3D Sentry BOEING E-3F Sentry

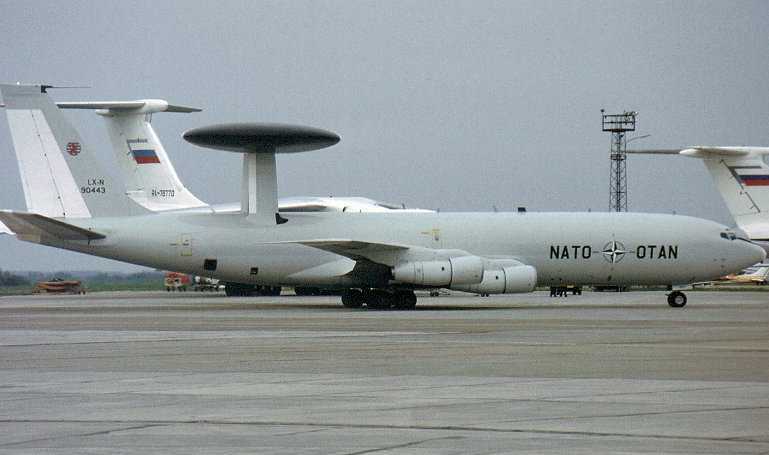

BOEING E-3A (CFM56) Sentry BOEING E-3D Sentry BOEING E-3F Sentry E3CF aircraft photograph

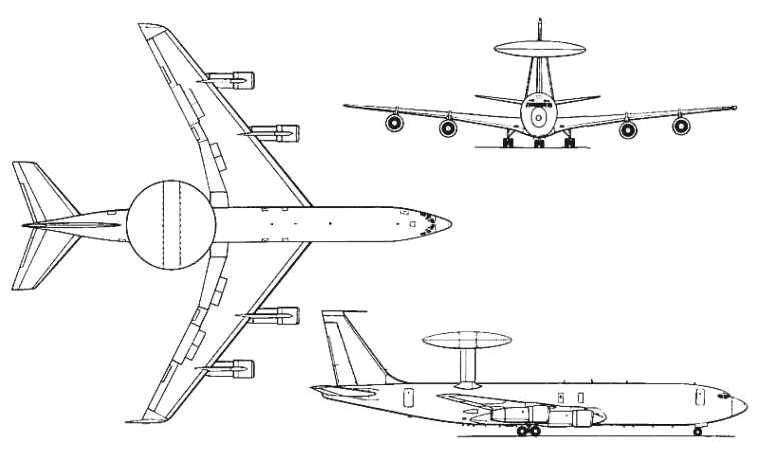

BOEING E-3A (CFM56) Sentry BOEING E-3D Sentry BOEING E-3F Sentry E3CF 3D view
Technical Data
Wing Span (m)44.4
Length (m)46.6
Height (m)12.9
MTOW (t)147.2
Fuel Capacity (ltr)90000
Maximum Range (Nm)
Persons On Board17
Take Off Distance (m)2500
Landing Distance (m)1100
Absolute Ceiling (x100ft)430
Optimum Ceiling (x100ft)
Maximum Speed (kts/M)545
Optimum Speed (kts/M)478
Maximum Climb Rate (ft/min)2500
Manufacturers
  • BOEING E-3A (CFM56) Sentry
  • BOEING E-3D Sentry
  • BOEING E-3F Sentry
